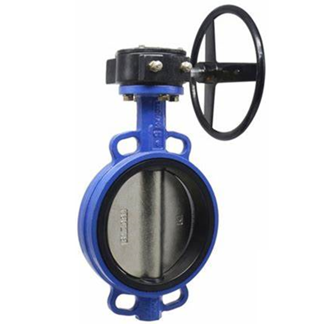

Feature:
The turning center of the butterfly plate is on the centerline of the valve body and the sealing face section of the butterfly plate. In closing, the ex-circle sealing face of the butterfly plate will extrude the valve seat made of synthetic rubber, generating elastic deformation on the seat to form an elastic force used as a sealing specific pressure so as to guarantee the tightness of the butterfly valve.
Design:
Design standard as per: API 609, ASME B16.34.
Small installation space, light weight, and maintenance friendly.
Good sealing effect and long service life.
Simple structure and small opening/closing torque.
Good flow adjusting ability, high precision of flow characteristic curve and good dynamic adjustment stability.
Soft seat designed.
Leakage rate: ANSI B 16.104 Ⅵ.
Product：
Body material: carbon steel, stainless steel, alloy steel
Nominal diameter: 1 1/2"～24"（DN40~DN600）
Pressure range: Class150（PN10~PN25）
End connection: RF, Wafer,Lug
Working temperature:-46℃～+120℃
Operation: Wrench, worm gear, electric, pneumatic, etc.
