Feature:

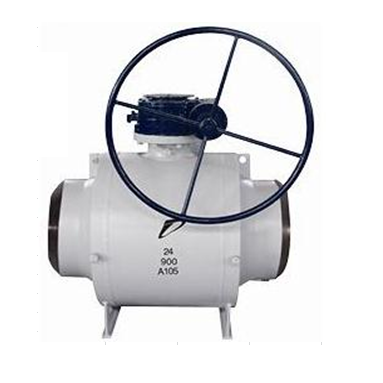

Body of fully welded ball valve is forged and welded, instead of bolts and nuts, to aviod any potential leakage from body.
The forged body with regular structure and even thickness can avoid shrinkage cavities, pin holes, cracks, sand holes and other defects occurring to casting body valves.
Fully-welded ball valves can be spherical and cylindrical type. Usually the spherical type has only one welding seam on the body, the cylindrical type has two welding seam on the body.

Design:
Ball valve are designed in accordance with ISO14313、API 6D;
Simple structure with good tightness and small torque;
With a fully-welded valve body, full bore and the minimum flow resistance (zero actually);
Emergency sealant injection;
Cavity pressure self relief;
Low emission packing;
Fire safe, anti-static and anti-blowout stem design;
Valve seat function DBB, DIB-1, DIB-2;Optional extended bonnet;
Optional overlay stainless steel on body to seat surface and/ｏｒ gasket container surface;
Be able to be used for underground installation without corrosion of interior parts, therefore, it is the best application for petroleum and natural gas line systems;
Service life up to 20 years.

Product:
Body material: carbon steel, stainless steel, alloy steel, etc
Nominal diameter:2"～60"（DN50~DN1500）
Pressure range:Class150～2500（PN10~PN420）
End connection: RF, RTJ, BW
Working temperature:-46℃～+200℃
Operation:Wrench, worm gear, electric , pneumatic , etc
