Feature:

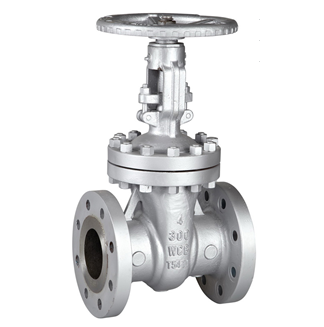

certain angle is formed between the two sealing faces of the single-disc or double-discs wedge gate valve and perpendicular to the pipeline axis. It is mainly used for switching on or off the medium within pipelines, that is, it is used in a full open or close manner.
The gate valve is widely applicable for oil industry, chemical industry, and power station.

Design:
Design standard: API 600、BS1414、API 603
Small flow resistance for fluid.
Only a small force is required for opening/closing.
No limitation on the flowing direction of the medium .
During opening and closing process, the friction between the disc wedge and the seat is small, so the sealing is reliable ensuring tightness and long service life.
The valve is designed in a back-seat structure.
The valve stem sealing is realized by the collaboration of flexible and woven graphite. ensuring a more reliable tightness.
Optional pressure seal bonnet type.
Optional solid-wedge type.
Optional non-rising stem structures.Optional jacket structure.

Product:
Body material: carbon steel, stainless steel, alloy steel,etc
Nominal diameter:2"～60"（DN50~1500）
Pressure range: Class150～2500（PN10~PN420）
End connection: RF, RTJ, BW
Working temperature:-46℃～+560℃
Operation: Hand wheel, gear box, Electric , Pneumatic , etc.
